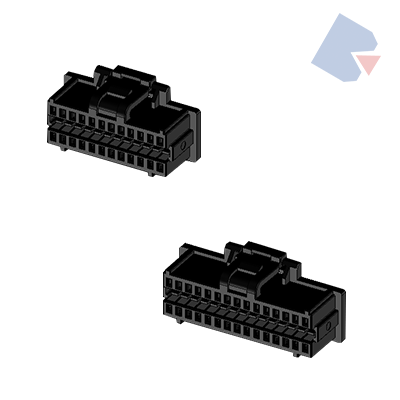

Wire to Board 1.0 - Receptacle

Part No.	Pitch	Circuits	Current Per Circuit	Ratting Voltage	Contact Resistance	Durability	Service Temperature	Mating Series	Mounting Type	Enhanced Polarized	Housing or terminal Material	Color
70202-2400	1.0mm	24	1A	100V	50mΩ	30 times	-40℃~85℃	70201/70203 Series	Vertical SMT W/TWO Post	No	LCP	Nature
70202-3000	1.0mm	30	1A	100V	50mΩ	30 times	-40℃~85℃	70201/70203 Series	Vertical SMT W/TWO Post	No	LCP	Nature
70526-2410	1.0mm	24	1A	50V	20mΩ	50 times	-25℃~85℃	70527/70528 Series	-	No	Thermoplastic	Black
70526-3010	1.0mm	30	1A	50V	20mΩ	50 times	-25℃~85℃	70527/70528 Series	-	No	Thermoplastic	Black
