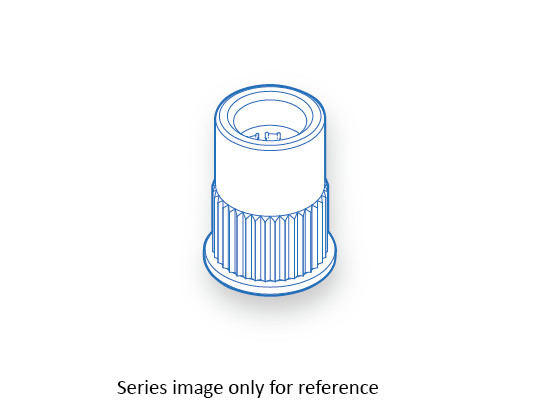

60201-103*

Plating Spec. On Contact Area
* Crystalband Terminal
4: Gold Plated 0.381 Micrometers / 15 Microinch
5: Gold Plated 0.762 Micrometers / 30 Microinch
G: Silver Plated 5.08 Micrometers / 200 Microinch
* Crystalband Body
‧ Gold Flash
‧ Silver Plated 2.54 Micrometers/100 Microinch
產品詢問
產品規格
Ø 5.7mm
Plug Material Copper Alloy
Contact Material Copper Alloy
Terminal Type Bus Bar
Inserting Force (Max.) 7N (0.71kgf)
Extraction Force (Min.) 3.5N (0.36kgf)
Durability 10,000 cycles
Rating Voltage 250 Voltage (Customize)
Contact Resistance 0.35 MΩ
Operating Temperature -40℃ to 130℃
Operating Current at 30℃ T-Rise 320A at Bus Bar
Mating Series 60202-1***
技術文件
3D File 會員登入
2D File
Specification
Package Spec

更多資訊

  1. The values specified in this website are only for reference.
    The products/specifications are subject to change without notice.
  2. We strongly suggest you to contact our sales for further information when considering use of any of the products in any other way than the recommended applications or for a specific use that requires an extremely high reliability.
