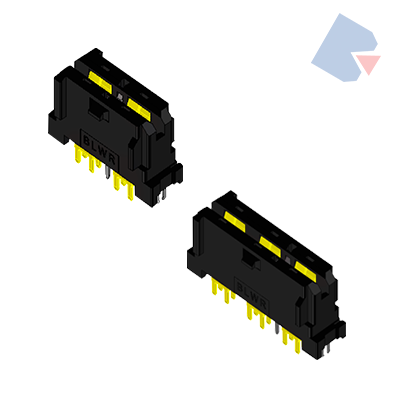

Wild-Influx™ - Vertical

Part No.	Pitch	Circuit	Current	Operating Voltage (Power/Signal)	Durability	Flammability	Terminal Material	Housing Material	Operating Temperature	Contact Resistance (Max.) (Power/Signal)	Withstanding Voltage (Power/Signal)	Insulation Resistance (Min.) (Power/Signal)	Mating series
70503-602*	10.16mm	8	100A	48V	50 Cycles	UL-94_V0	Copper Alloy	Thermoplastic	-40℃~105℃	0.4 mΩ /50 mΩ	1000V	100 MΩ	70504 series
70503-612*	10.16mm	8	100A	48V	50 Cycles	UL-94_V0	Copper Alloy	Thermoplastic	-40℃~105℃	0.4 mΩ /50 mΩ	1000V	100 MΩ	70504 series
70503-702*	10.16mm	12	120A	48V	50 Cycles	UL-94_V0	Copper Alloy	Thermoplastic	-40℃~105℃	0.4 mΩ /50 mΩ	1000V	100 MΩ	70504 series
70503-802*	-	4	50A	48V	50 Cycles	UL-94_V0	Copper Alloy	Thermoplastic	-40℃~105℃	0.4 mΩ /50 mΩ	1000V	100 MΩ	70504 series
70520-502*	10.16mm	16	150A	48V	50 Cycles	UL-94_V0	Copper Alloy	Thermoplastic	-40℃~105℃	0.4 mΩ /50 mΩ	1000V	100 MΩ	70521 series
