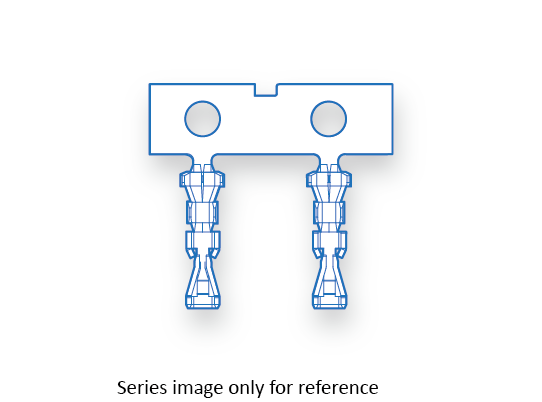

70006-112*

*: Plating Spec. On Contact Area
1: Gold Flash
2: Gold Plated 5 Microinch / 0.127 Micrometer
3. Gold Plated 10 Microinch / 0.254 Micrometer
4. Gold Plated 15 Microinch / 0.381 Micrometer
5. Gold Plated 30 Microinch / 0.762 Micrometer
Product Inquiry
Product Specifications
Pitch 2.0mm
Wire AWG 24~28 AWG
Service Temperature -55℃~105℃
Mating Series 70007 series
Technical Resources
3D File Member login
2D File
Specification
Package Spec

More Information

  1. The values specified in this website are only for reference.
    The products/specifications are subject to change without notice.
  2. We strongly suggest you to contact our sales for further information when considering use of any of the products in any other way than the recommended applications or for a specific use that requires an extremely high reliability.
