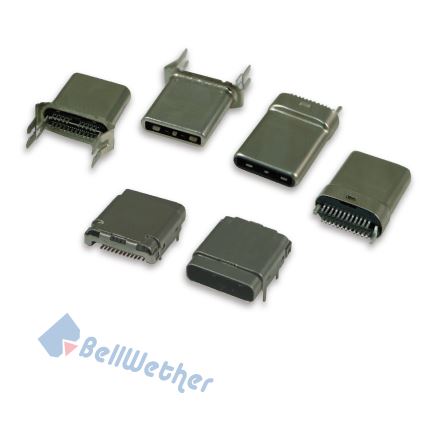

USB Connector ( USB-C )

Product Inquiry
General Specification:
Pitch
0.5mm
Current
5A
Rating Voltage
20V
Contact Resistance
40 mΩ
Durability
10000 Times

Product List

COMPARE

All Part No. Gender Operating Temperature Mounting Type USB spec Center Heigh Dip Pin Length
80210-102* Header -40℃~80℃ Straddle Mount USB 3.1 Gen2 No No
80211-192* Right Angle Receptacle -40℃~80℃ Hybird USB 3.1 Gen2 1.48mm 0.8mm
80211-792* Right Angle Receptacle -40℃~80℃ Hybird USB 3.1 Gen2 1.48mm 1.2mm
80211-892* Right Angle Receptacle -40℃~80℃ Hybird USB 3.1 Gen2 1.48mm 1.6mm
