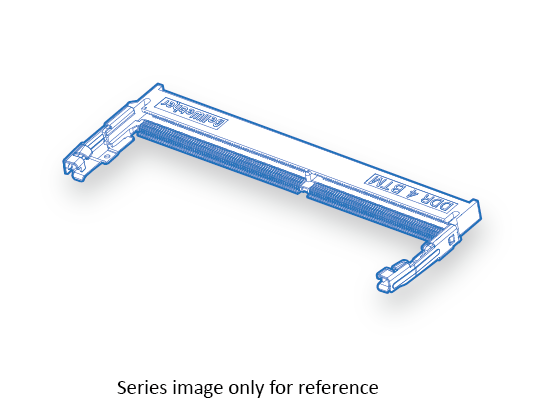

80886-112*

Contact Area Finish
‧ Gold Flash Over 50 Microinch/1.27 Micrometers Nickel
‧ 5 Microinch/0.127 Micrometers Gold Plated Over 50 Microinch/1.27 Micrometers Nickel
‧ 10 Microinch/0.254 Micrometers Gold Plated Over 50 Microinch/1.27 Micrometers Nickel
‧ 15 Microinch/0.381 Micrometers Gold Plated Over 50 Microinch/1.27 Micrometers Nickel
‧ 30 Microinch/0.762 Micrometers Gold Plated Over 50 Microinch/1.27 Micrometers Nickel

Hỏi đáp sản phẩm

thông số kỹ thuật sản phẩm
Mounting Type	Reverse Type
Pitch	0.5mm
Circuit	260
Current	0.5
Operating Voltage	20mV
Total Height	4.0mm
Durability	30 cycles
Terminal Material	Copper Alloy
Housing Material	High Temperature Thermoplastic
Operating Temperature	-40℃~85℃
Contact Resistance (Max)	40 mΩ
Withstanding Voltage	500V
Insulation Resistance (Min)	250 MΩ

Tài liệu kỹ thuật

3D File	Đăng nhập thành viên
2D File
Specification
Package Spec

Thêm thông tin

The values specified in this website are only for reference.
The products/specifications are subject to change without notice.
We strongly suggest you to contact our sales for further information when considering use of any of the products in any other way than the recommended applications or for a specific use that requires an extremely high reliability.
