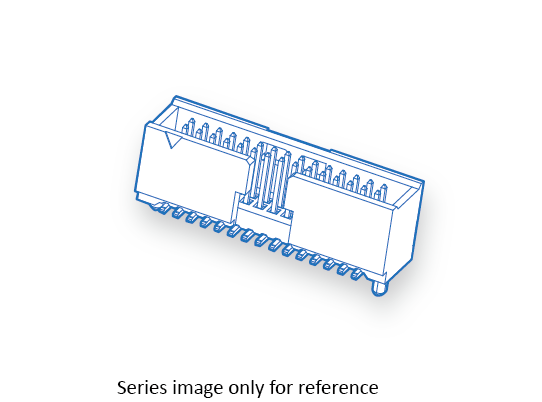

70203-30A4

* Contact Area Plated Spec.
1. Gold Flash.
2. Gold Plated 5 Microinch / 0.127 Micrometers.
3. Gold Plated 10 Microinch / 0.254 Micrometers.
4. Gold Plated 15 Microinch / 0.381 Micrometers.
5. Gold Plated 30 Microinch / 0.762 Micrometers.
8. Matte Tin 100-200 Microinch / 2.54-5.08 Micrometers Over All.

Hỏi đáp sản phẩm

thông số kỹ thuật sản phẩm
Pitch	1.0mm
Circuits	30
Current Per Circuit	1A
Ratting Voltage	100V
Contact Resistance	50mΩ
Durability	30 times
Service Temperature	-40℃~85℃
Mating Series	70202 Series
Mounting Type	Vertical SMT W/TWO Post
Enhanced Polarized	No
Housing or terminal Material	LCP
Color	Nature
Dip Pin Length	-

Tài liệu kỹ thuật

3D File	Đăng nhập thành viên
2D File
Specification
Package Spec

Thêm thông tin

The values specified in this website are only for reference.
The products/specifications are subject to change without notice.
We strongly suggest you to contact our sales for further information when considering use of any of the products in any other way than the recommended applications or for a specific use that requires an extremely high reliability.
